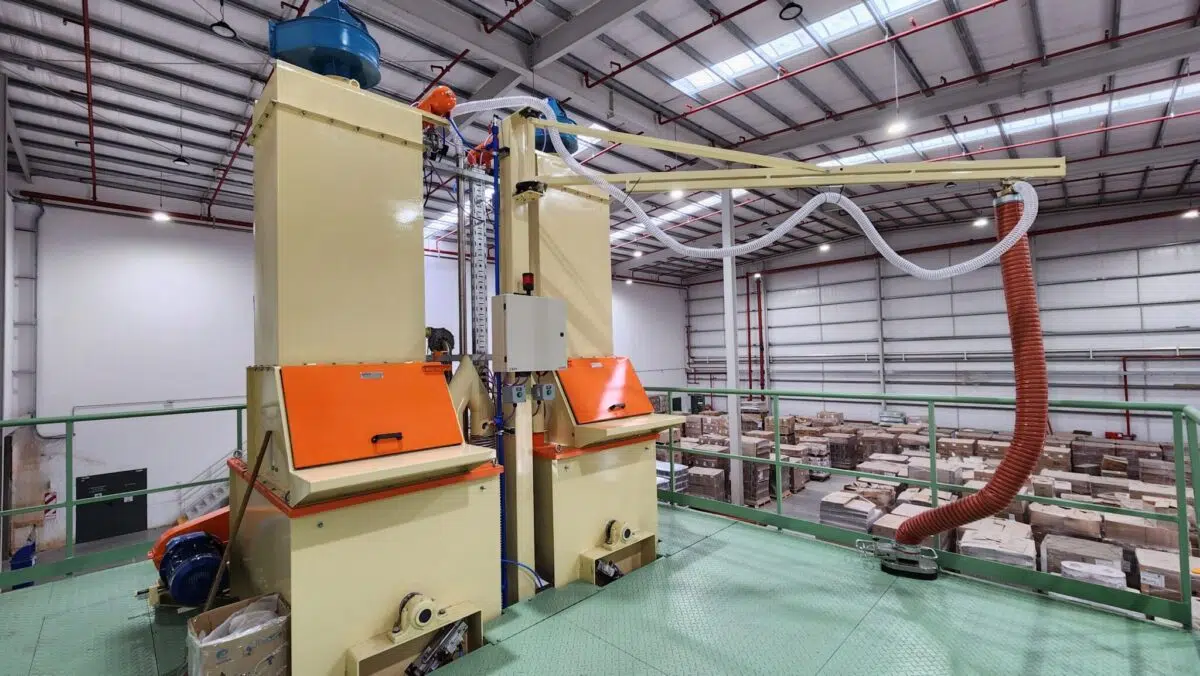

Manual Handling regulations are strict on repetitive heavy lifting of loads. Our Vacuum Tube Lifter is the ideal method of lifting safely sacks, boxes and oder heavy objets protecting the operator from serious back injuries and businesses from damaging insurance claims.
Each Vacuum Lifting System is controlled intuitively by the operator and uses a single power medium – an electrical vacuum pump – to create a vacuum level when a suction pad or gripping device is placed on an object load. Taking the strain out of repetitive lifting, Prillwitz’s Industrial Vacuum Lifters only require one operator and need very little maintenance; resulting in greater staff deployment efficiencies, enhanced levels of productivity, and improved economic savings overall.
Benefits
- Proven Health and Safety solution.
- Effortless repetitive lifting
- Minimal running costs.
- Increased operator safety & performance.
- Increased productivity.
Features
- Lifts weights from 5-100kg.
- Low noise vacuum drive.
- In-line filter protects pump.
- Soft Outer Rubber Seal.
- Internal Mesh to stop sack being sucked into system.
- Upper rotary coupling gives 250º rotation (optional 360º).
- Heavy duty reinforced lift tube.
- In-built safety feature prevents load dropping.
- Options for to use multiple suction feet for lifting different products.
- Range of gantry systems available.
Technical information
1 – Electric panel
3 – Cartridge filter
4 – Column
5 – Movable arm
6 – Handle with vacuum lifting command
7 – Suction feet assembly for permeable bags
8 – Suction feet assembly for non-permeable bags
(Positions 7 and 8 are optional)
