Industrial Silos

Manufacture of silos

The stockpiling of products can be done in bags or in hoppers. But when it is necessary to stockpile raw materials in large quantities, we recommend the use of silos because they have the following advantages: they take up less space, facilitate cleaning and require fewer personnel. When combined with automated extraction systems and product feeding to the production line, the need for personnel is further reduced, also reducing the likelihood of human error.

We have the solution to your dry product storage problem. You can choose between a flexible trevira silo for indoor use; a metal silo for indoor use; or, if you need to store floury products outdoors, the metal silo for outdoor use will be the most advisable. The latter can be built in steel with different finishes, and even in stainless steel.

In Prillwitz we offer customized solutions for product storage and feeding to the production line. We have different unloading systems, conveying and sifting for dry products, depending on the product to be processed. We can also provide you with dosers, granulated product mills and state-of-the-art scales that guarantee rigorous production control.

Find here the silo that best suits your storage needs:

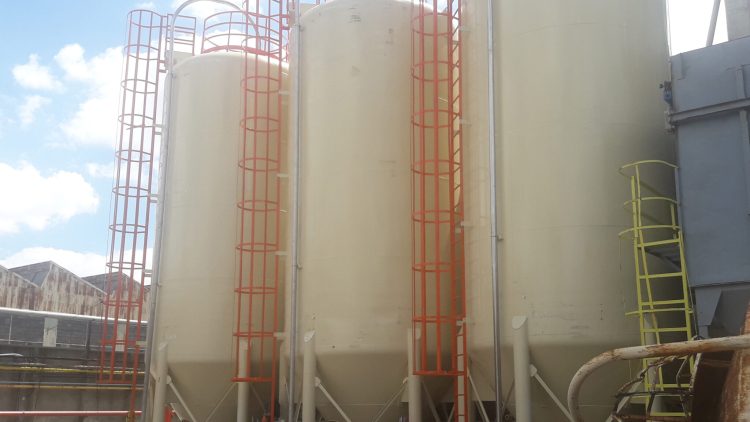

Disassemblable silos

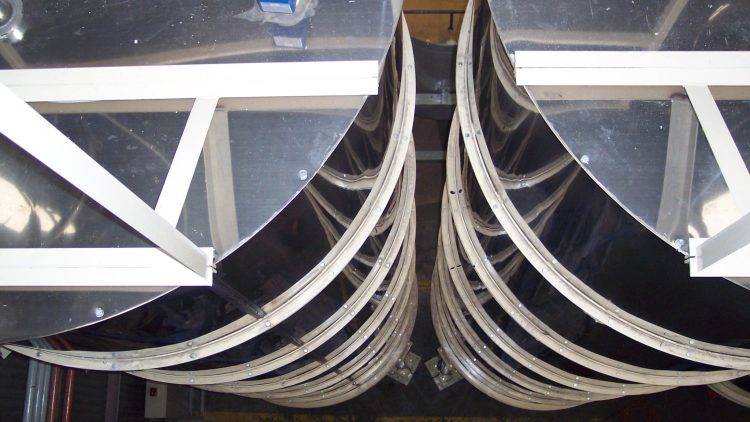

Disassemblable silos

The disassemblable silos are characterized by their versatility in terms of capacity and geometry (square and circular).

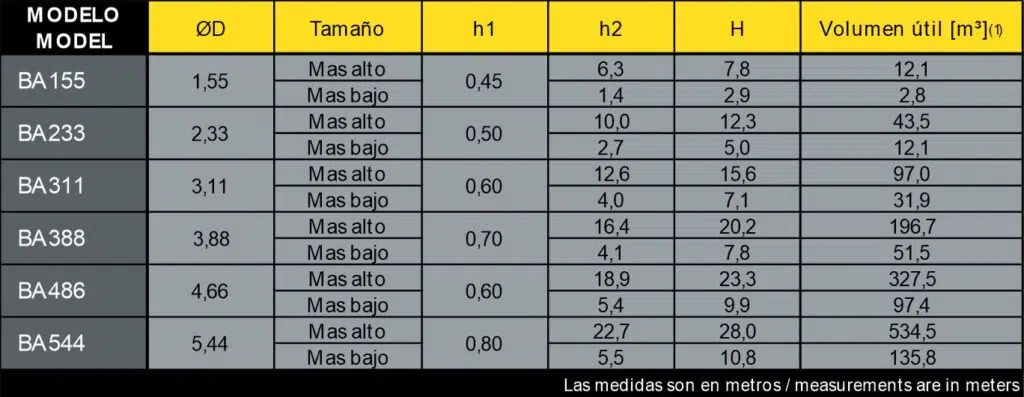

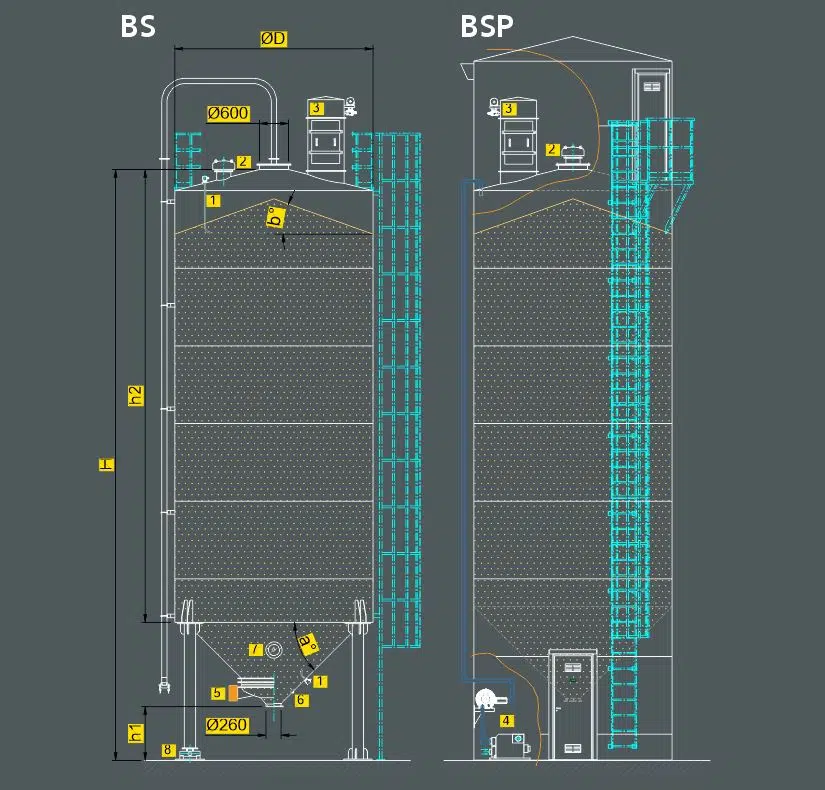

Outdoor silos

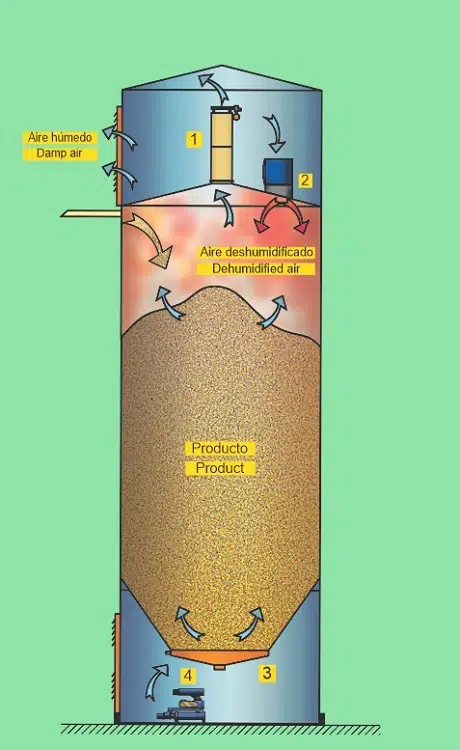

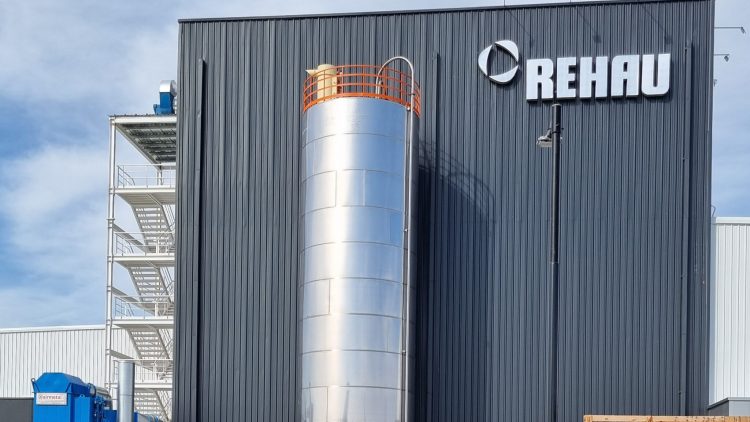

Weatherproof silos

Designed for outdoor location, our silos are manufactured under a meticulous production process to achieve 100% watertightness.
STP fabric silos flexible fabric silos

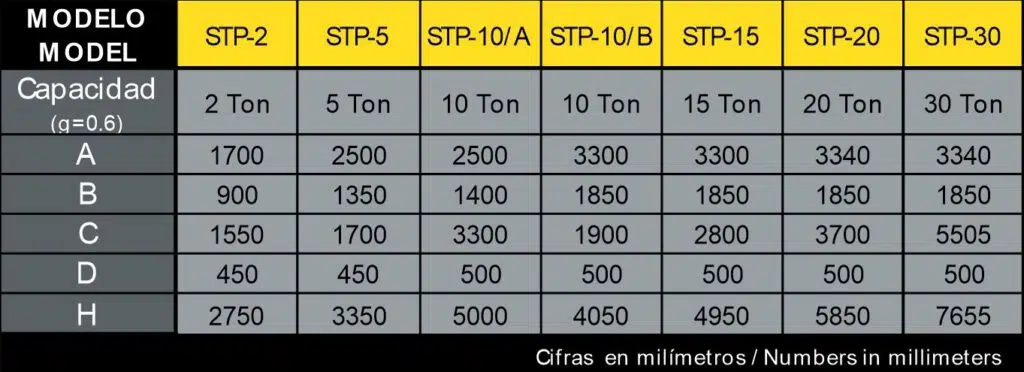

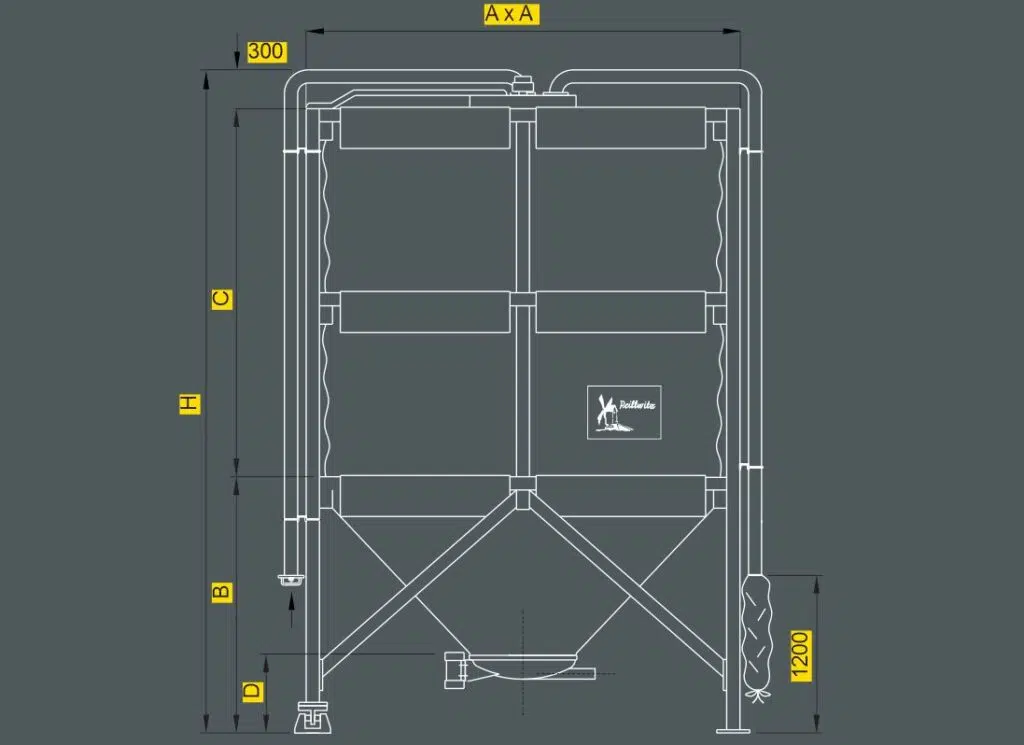

STP flexible silos

Trevira® flexible fabric silos have been specially designed to simplify storage and discharge operations for dry bulk products.
For the installation of bulk storage systems, we have the necessary machinery to complete the silo installation. Feeding and discharge systems, mechanical and pneumatic conveyors, vibrators and silo fluidizers, dust collectors, cyclones, indicators and level detectors, sifters, mills, rotary valves, etc. are required.

Typical diagram of an installation for storing bulk materials, with pneumatic conveying to production stations

1 Truck
2 Silos
3 Filter
4 Suction
5 Level control
6 Extractor
7 Scale
8 Thread
9 Magnet
10 Sifter
11 Airlock
12 Compressor
13 Kneader
14 Rotating tube
15 Weigh hopper
16 Water tank
17 Valve
18 Fluidizer
19 Diverter valve
20 Display

Some of the raw materials we can handle:

Grains and seeds
  • Wheat
  • Maize
  • Oats
  • Coffee
  • Cocoa
  • Rye
  • Beat
  • Rice
  • Girassol
  • Chickpeas
  • Soybeans
  • Peanuts
  • Peanuts
  • Spices
Foodstuffs:
  • Balanced feed
  • Pellets or feeds
  • Crystalline sugar
  • Impalpable sugar
  • Cocoa
  • Coffee
  • Coriander
  • Curcuma
  • Gelatin
  • Bone meal
  • Fish flour
  • Milk powder
  • Dried beans
  • Bread crumbs
  • Batter
Chemicals and Minerals:
  • Aluminum powder
  • Atrazine
  • Bentonite
  • Borax powder
  • Lime
  • Caolin
  • Activated carbon
  • Calcium carbonate
  • Cement
  • Shell
  • Quartz
  • Titanium Dioxide
  • Dolomite
  • Fertilizers
  • Monoammonium Phosphate
  • Diammonium Phosphate
  • Tricalcium Phosphate
  • Mica
  • Refractory Materials
  • Sodium naphthalenesulfonate
  • Pigments
  • Soaps
  • Salt
  • Precipitated silica
  • Caustic soda
  • Magnesium sulfate
  • Zinc sulfate
  • Tanine
  • Diatomaceous Earth
  • Dyes
  • Gypsum
  • Lithium
Grain milling:
  • Afrecho and afrechillo
  • Wheat semolina and semolina
  • Semolina
  • Rebasillo
  • Zootechnical flour
  • Maize semolina
  • Semolina
  • Polenta
  • Wheat flour, corn flour, soy flour, etc.
  • Germ
  • Starch
  • Hull
Plastics and petrochemicals:
  • Polycarbonate
  • Vinyl polyvinyl chloride or PVC
  • Polystyrene or PET
  • Polyethylene
  • Polypropylene
  • Expanded polystyrene (Styrofoam)
Other:
  • Sawdust
  • Wood
  • Cork
  • Soap powder
  • Pigments
