Within the equipment for the transport of products, the modular downspout stands out, which is used for the transport of dry materials by taking advantage of the law of gravity.
The main advantage of our downpipes is precisely that they are modular. This allows a quick assembly by joining the different parts with rings and elbows.
Normally, control valves are coupled to the downspouts, which allow not only to verify that the product flow is correct, but also to take samples of the product for later analysis. All the pieces are manufactured with the following inner diameters: 100, 120, 150, 200, 250 and 300 mm. They can be manufactured in rustproof painted iron, as well as in stainless steel of normal or special thickness (indicated for the processing of abrasive products).
In the case of distributor valves, automation is possible by means of pneumatic actuators.
Technical information
Welded pipe
Pull ring
40/90 adjustable elbow
Elbow segment

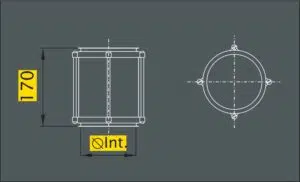

SGRL Viewer

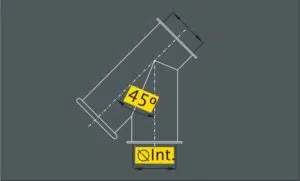

Grain buffers
Inspection T Piece 90°
Symmetrical fork
Inspection pipe
Double fork
Rubber cover
Asymmetric fork

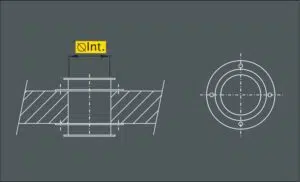

Connecting flange
Inclined discharge spout

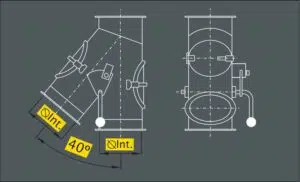

Asymmetrical distributor

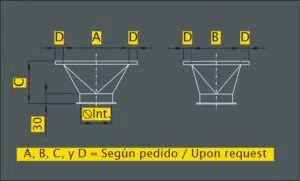

Cone piece
Asymmetric valve
Symmetrical distributor
Unloading spout

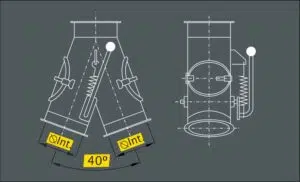

Symmetrical valve
All parts can be manufactured in the following inner diameters: 100, 120, 150, 200, 250 and 300 mm.
The products can be made of both anti-rust painted iron and stainless steel in normal or special thickness for abrasive products.
In the case of distributor valves, automation is possible through pneumatic actuators.
